1750EP 15 Watts Output Transformer Harvard, Princeton Brown, Princeton Reverb Tweed Deluxe
15 Watts Paper Vintage Option
SKU code: 1750EP

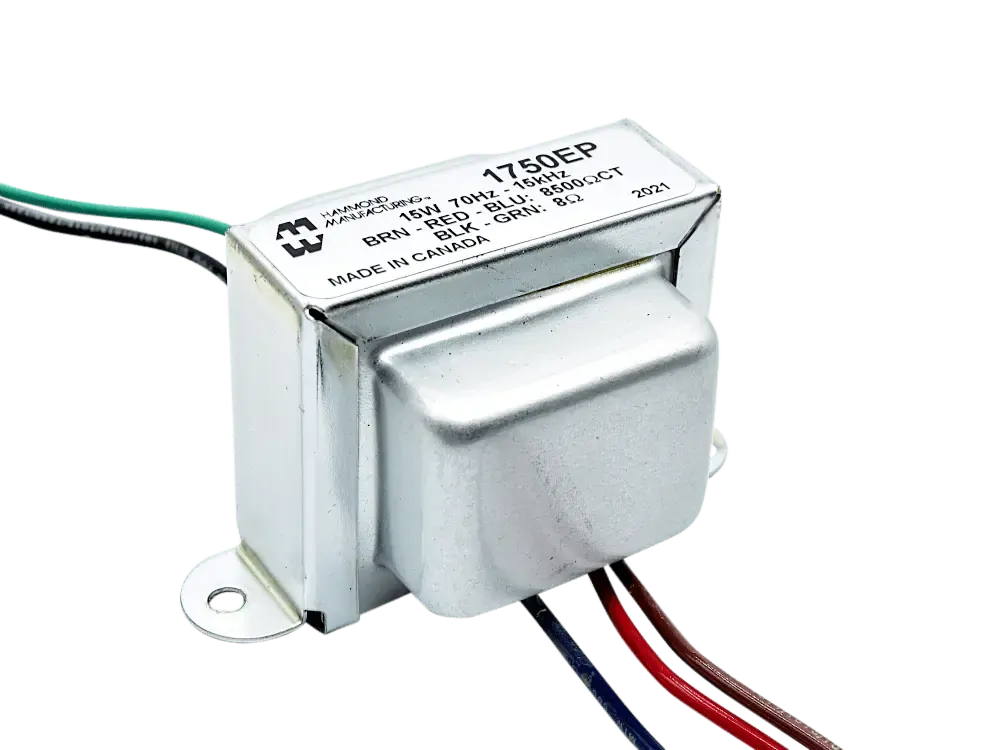

1750EP Transformer for Tube Guitar Amps
Designed as a true vintage replica drop in
Fender Tweed Deluxe, Harvard 5F10, Princeton Brown, AA964, Blackface, Silverface,
- Princeton Reverb AA1164, AA764, B1270, Blackface, Silverface.
Note: See the 1750E for a more modern version
Hammond | Primary | Secondary | Amp Type | Power | Plastic Bobbin or | Amplifier | Equivalent to |
|---|---|---|---|---|---|---|---|
| 1750EP | 8,500 | 8 | Push-Pull | 15 | Paper | (Harvard 5F10) (Princeton Brown, AA964, Blackface, Silverface) (Princeton Reverb AA1164, AA764, B1270, Blackface, Silverface) Tweed Deluxe 5E3 | 50246 & 125A10B & 022913 |
- Designed for drop-in replacement of original units.
- Physically, parts were designed to look similar to original factory units (where possible).
- Materials used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
- Output transformers marked UPGRADE (below) allow for more versatility by added secondary connections that did not exist on the original units.
Note: Difference between the 1750E and 1750EP
- 1750E (bobbin) → More modern construction, good performance, lower cost. Perfectly usable and very common.
- 1750EP (paper) → Closer to classic/vintage winding technique, better measured inductance and leakage figures, and the version most people choose when they want the “more vintage” character for a 5E3 or Princeton-style build.
The 1750EP has significantly higher primary inductance and much lower leakage inductance. This generally means:
- Better low-frequency performance / bass response
- Better high-frequency extension
- Lower phase shift (advantageous if the amp uses negative feedback)
| Parameter | 1750E | 1750EP |
|---|---|---|
| Primary inductance | ~24 H | ~36 H |
| Leakage inductance | ~469 mH | ~32 mH |
| Frequency response | 70 Hz – 10 kHz* | 70 Hz – 15 kHz |
| Primary DCR (typical) | ~150 Ω | Higher (~182–239 Ω) |
Not what you're looking for? See this table for further help.
Retube Kits for Amps This Transformer Fits
Doing a full service? These retube kits suit the amps this part is listed for.
Helpful Evatco Guides
- Transformer Selector: find the right transformer by amp model or specification
- Why Select Hammond Transformers: build quality and why we stock Hammond
- Transformers: Power, Output & Chokes: how each transformer type works in a tube amp
| SKU | 1750EP |
| Brand | Hammond |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.120m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001728000m3 |
| Unit Of Measure | ea |
