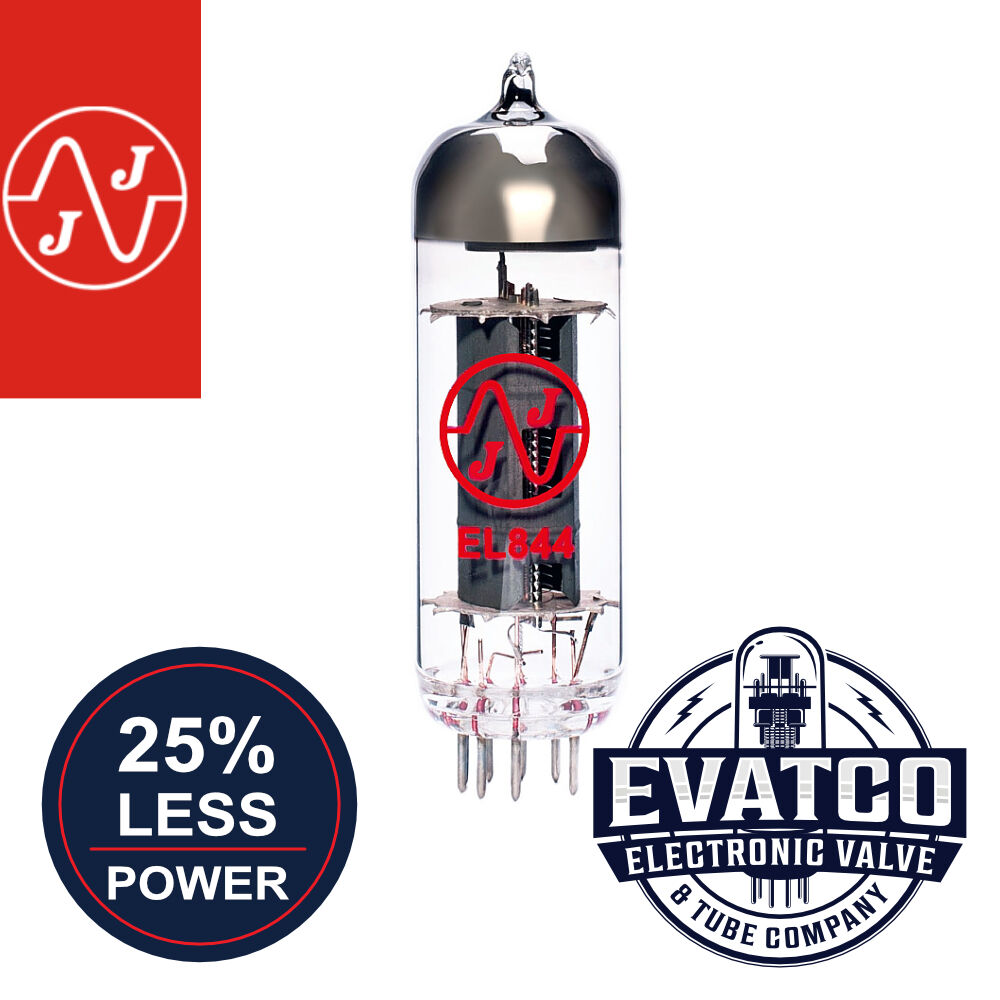

EL844 JJ Electronic power tubes

The JJ EL844 is a drop-in power tube replacement engineered to give valve-amp enthusiasts rich power-stage distortion at more manageable volume levels.

Designed as a lower-headroom alternative to the classic EL84 (6BQ5), the EL844 reduces maximum plate dissipation from the standard 12W down to 9W—giving you roughly 25% less power handling. This makes it a secret weapon for home players, studio recording, and small venues where pushing a full-wattage tube amp into its natural saturation point is usually far too loud.

Key Technical Specifications

• Type: Power Pentode (9-pin miniature / Noval base)

• Max Plate Dissipation: 9 Watts (vs. 12 Watts on a standard EL84)

• Drop-in Compatibility: Direct replacement for EL84 / 6BQ5 circuits

• Target Application: Cathode-biased & adjustable fixed-bias EL84 guitar amplifiers

Tone & Performance Highlights

• Earlier Breakup: Reaches that coveted "sweet spot" of tube saturation and soft-knee compression at significantly lower volume thresholds.

• Smoother Frequency Profile: Tames the harsh, aggressive upper-midrange spike typical of standard EL84s, delivering a flatter, warmer overall response.

• Cooler Operation: Draws less power and generates less ambient heat, making it easier on crowded, poorly ventilated combo chassis.

• Natural Dynamics: Maintains the chime, touch sensitivity, and harmonic richness of the original EL84 design without muddying your tone.

JJ EL844 vs. Standard JJ EL84

Biasing & Compatibility Considerations

Designed to drop right into standard EL84 sockets, the JJ EL844 works seamlessly in popular amplifiers like the Vox AC series, Fender Blues Junior, and Peavey Classic 30.

• Cathode-Biased Amps: No adjustments required—just swap out your existing tubes and play.

• Fixed-Bias Amps: Because of the EL844's lower 9-watt rating, you'll need to turn down the bias voltage by approximately 25% using your amp's internal bias adjustment pot.

Ever wanted to know more about the EL84?.. Simply click this link EL84
