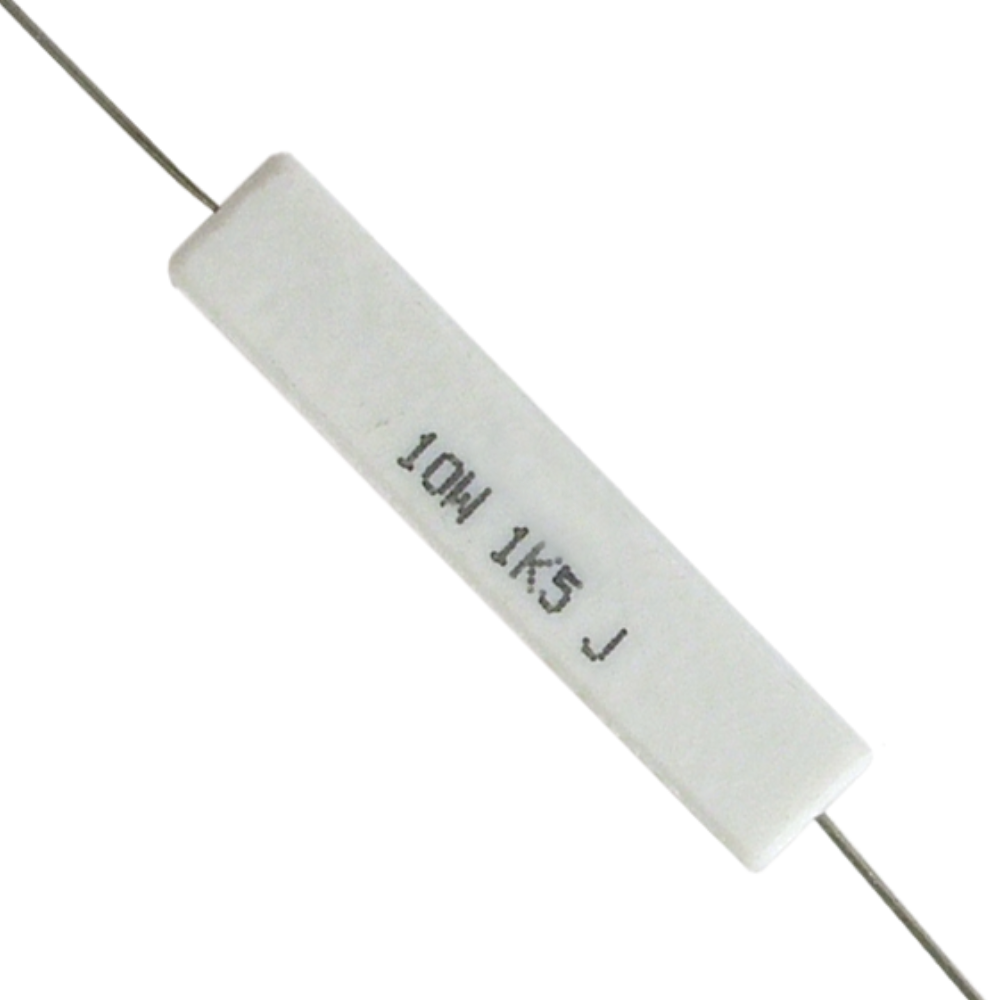

10 Watt Cement Resistors

10 Watt Wirewound Cement Resistors are constructed by wrapping high-resistance wire around an insulating core and sealing it within a rectangular ceramic body. Featuring a flame-retardant package and special inorganic cement fill, these exceptionally sturdy 10W resistors deliver high-temperature stability and excellent moisture resistance for demanding power supplies and tube amp circuits. Please note that with resistor values, a k or M represents a dot. Eg 5k6 is equivalent to 5.6k or 3m3 is equivalent to 3.3M.

Technical Specifications

  • Power Rating: 10 Watt
  • Tolerance: ± 5%
  • Working Voltage: 350V
  • Overload Voltage: 700V
  • Operating Range: -55°C to 155°C (derated over 70°C)
  • Dimensions: 1.93" L x 0.39" Sq. (49mm x 10mm x 10mm)
  • Features: Sealed with special cement, high-temp stability
  • Package: Ceramic flame-retardant casing

Available Resistance Values

Retail quantities only – Max. 20 per value

Ohms (Ω / R)

120r150r470r680r

Kilohms (kΩ)

1k2k24k710k
