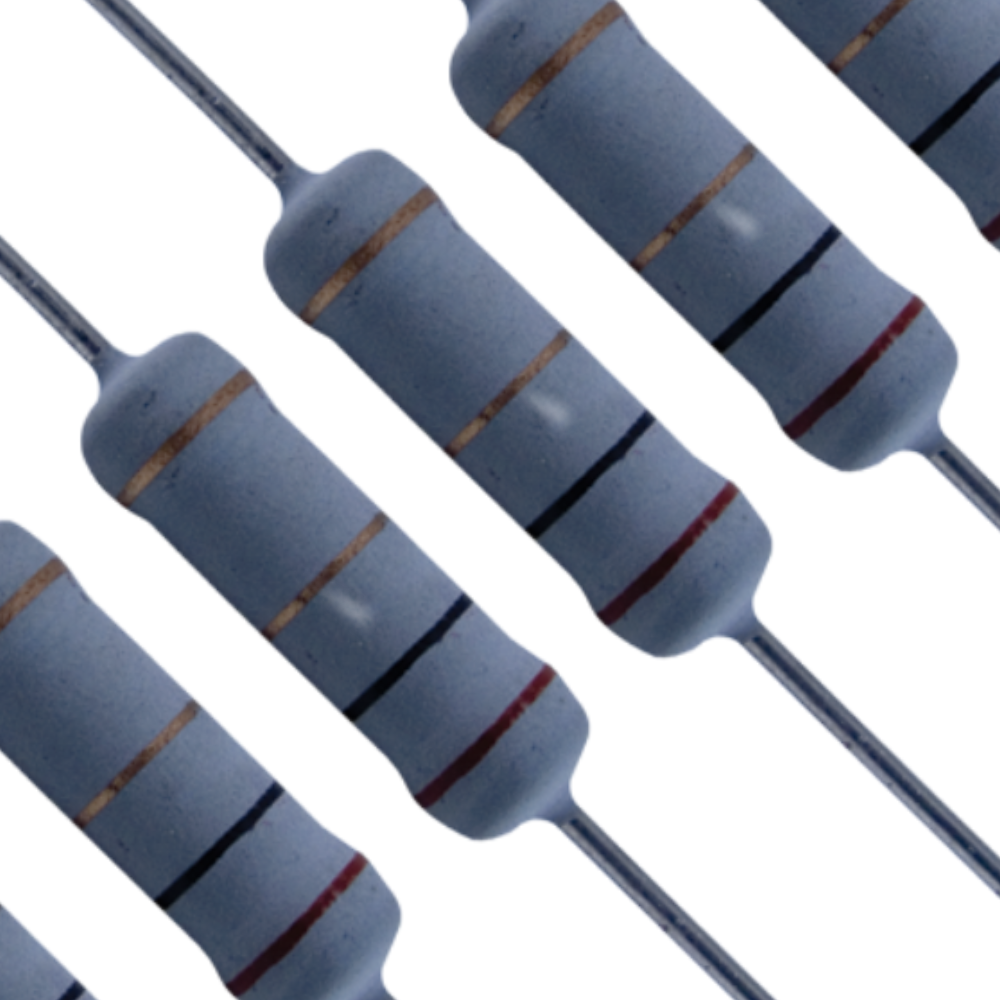

3 Watt Metal Oxide Resistors

Metal Oxide resistors are designed for demanding audio and high-power applications where exceptional stability under high-temperature conditions is required. Built on a high-purity ceramic core with a flame-retardant coating, these 3W resistors provide reliable, low-noise performance across diverse operating environments. Please note that with resistor values, a k or M represents a dot. Eg 5k6 is equivalent to 5.6k or 3m3 is equivalent to 3.3M. If you need help with colours and values, use our Resistor Colour Code Calculator here.

Technical Specifications

  • Power Rating: 3 Watt
  • Tolerance: ± 5%
  • Working Voltage: 350V
  • Overload Voltage: 600V
  • Operating Range: -55°C to 240°C (derated over 70°C)
  • Dimensions: 0.57" L x 0.20" Dia. (14.5mm x 5.0mm)
  • Features: Flame-retardant coating, high-purity ceramic core
  • Identification: Standard EIA color coded

Available Resistance Values

Retail quantities only – Max. 100 per value

Ohms (Ω / R)

1r10r47r68r100r120r150r180r220r270r330r390r470r560r680r820r

Kilohms (kΩ)

1k1k21k51k82k22k73k33k94k75k66k88k210k12k15k18k22k33k47k56k68k82k100k120k150k180k220k330k470k560k
SKU M-3wattmo
Brand Generic
Shipping Weight 0.0160kg
Shipping Width 0.010m
Shipping Height 0.050m
Shipping Length 0.060m
