Alpha Log Potentiometers

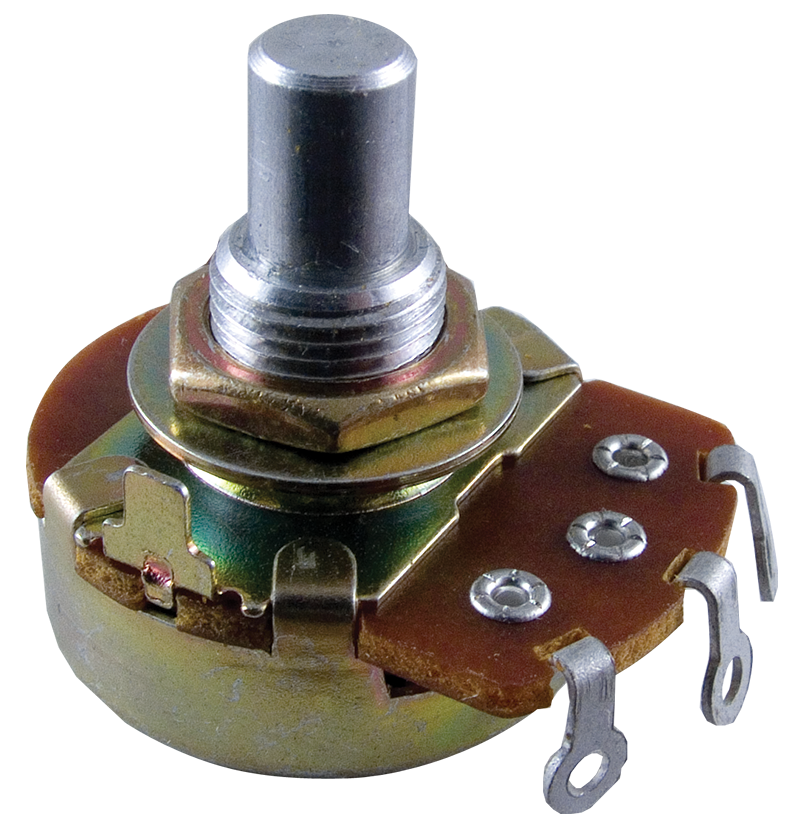

Alpha branded Log Potentiometers with 24mm solid shaft suitable for a 9.5mm hole

Available in

  • 1k
  • 10k
  • 25k
  • 100k
  • 250k
  • 500k
  • 1M
Body Depth 11.5 mm
Body Width 24 mm
Bushing Length 6.5 mm
Bushing Thread 3/8"-32UNF
Total Shaft Length 15 mm
Rated Wattage (Power)  0.25W
Max. Working Voltage 250V



SKU alpha-log
Brand Alpha
Shipping Weight 0.0100kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000012000m3

good value pots.

By: on 14 December 2021
never had an issue with these, they work great. some people like to spend more on bourns pots, but i don't see the point. kinda prefer the tighter turn feel that these pots have over the bourns.
