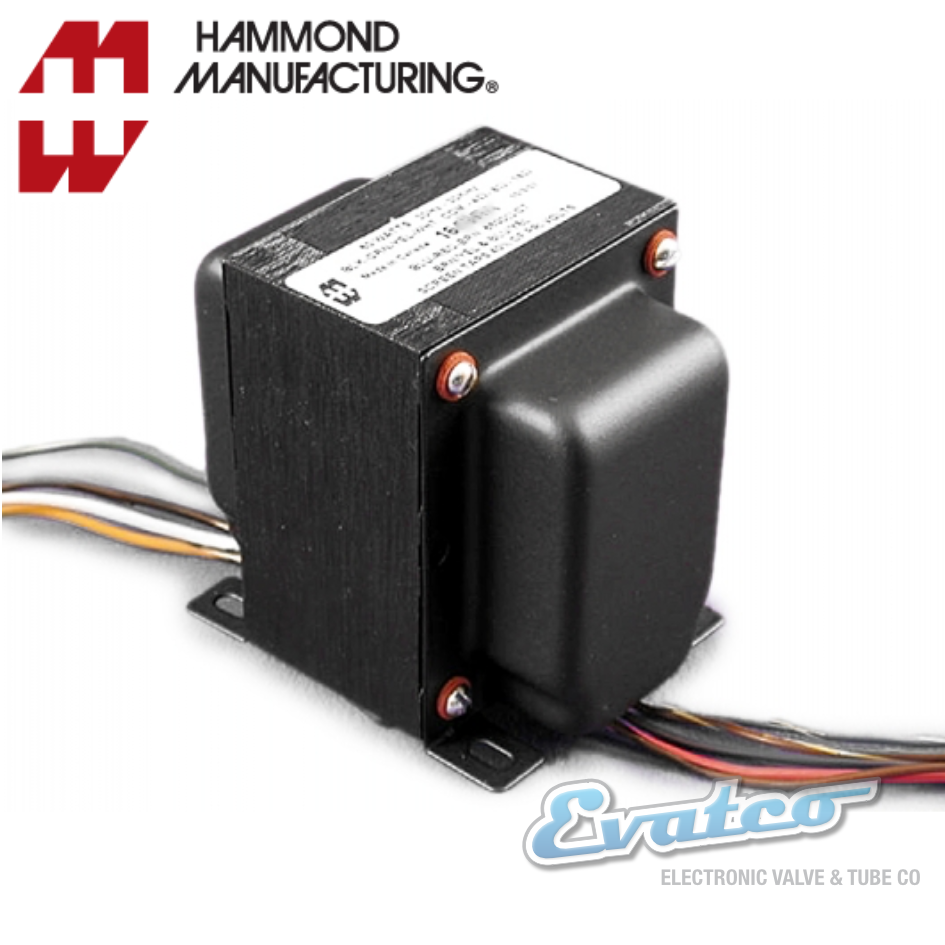

1650RA 100 watts Output Transformer

100 watts - 5,000ct - 318mA

$242.00
Sold Out - Backorder Available
If an item is marked "Backorder" then they could take up to 3 weeks to arrive and may delay your order


Calculate Shipping

1650RA 100watt Push-Pull Output Transformer

100 Watts - 5,000ct - 318mA

Suggested tubes 807, 5881, EL34, 6146B, 6550B, KT88

A bit about the 1608A-1650A Series

  • A new and improved version of Hammonds 1608-1650 Series multiple secondary output transformers
    • re-designed secondaries for easy hook-up of secondary loads).
  • Designed for push-pull tube output circuits.
  • Units are designed to provide ample "headroom" at bass frequencies
  • note the weight of each transformer).
  • All models have a secondary tapped for 4, 8 or 16 ohm outputs.
  • Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
  • Manufactured with plastic coil forms for coil support and insulation.
  • Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
  • Insulated flexible leads 8" min.
  • All units (except the 1650G) include 40% screen taps for Ultra-Linear operation (if desired).
  • Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
    • The 1650G does NOT have primary screen taps and will not support "Ultra-Linear" applications.


(1650ra)

SKU 1650ra
Brand Hammond
Shipping Weight 6.9600kg
Shipping Width 0.240m
Shipping Height 0.240m
Shipping Length 0.240m
Unit Of Measure ea
