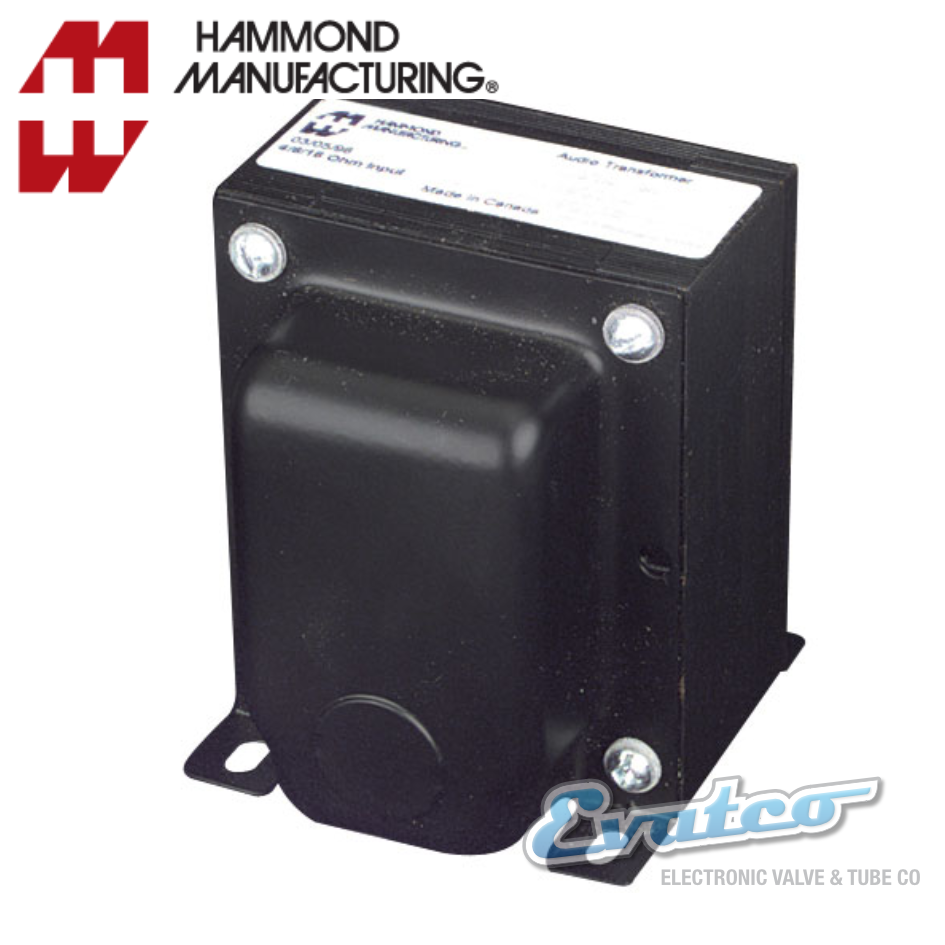

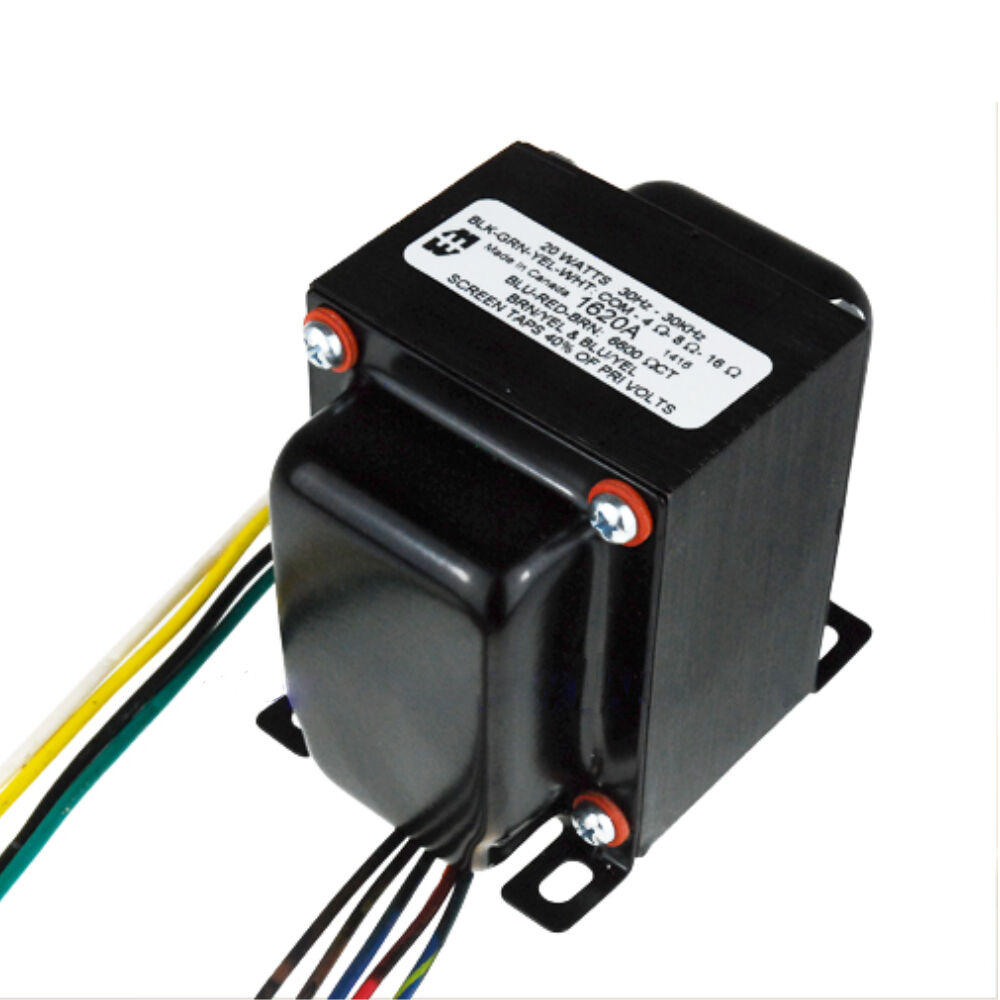

1620A 20watt Push-Pull Output Transformer

20 Watts - 6,600ct - 158mA

Suggested tubes 6AQ5, 6V6, 6L6

A bit about the 1620

  • "CLASSIC" PUSH-PULL TUBE TYPE ULTRA-LINEAR OUTPUT TRANSFORMERS
  • Designed for push-pull tube output circuits.
  • Enclosed (shielded),
  • 4 slot, above chassis
  • Type "X" mounting.
  • Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
  • Insulated flexible leads 9" min.
  • Manufactured with plastic coil forms for coil support and insulation.
  • Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
  • Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
  • Suggested tube types: 6AQ5, 6L6, 6V6
SKU 1620
Brand Hammond
Shipping Weight 1.9000kg
Shipping Width 0.220m
Shipping Height 0.220m
Shipping Length 0.220m
Shipping Cubic 0.010648000m3
Unit Of Measure ea
