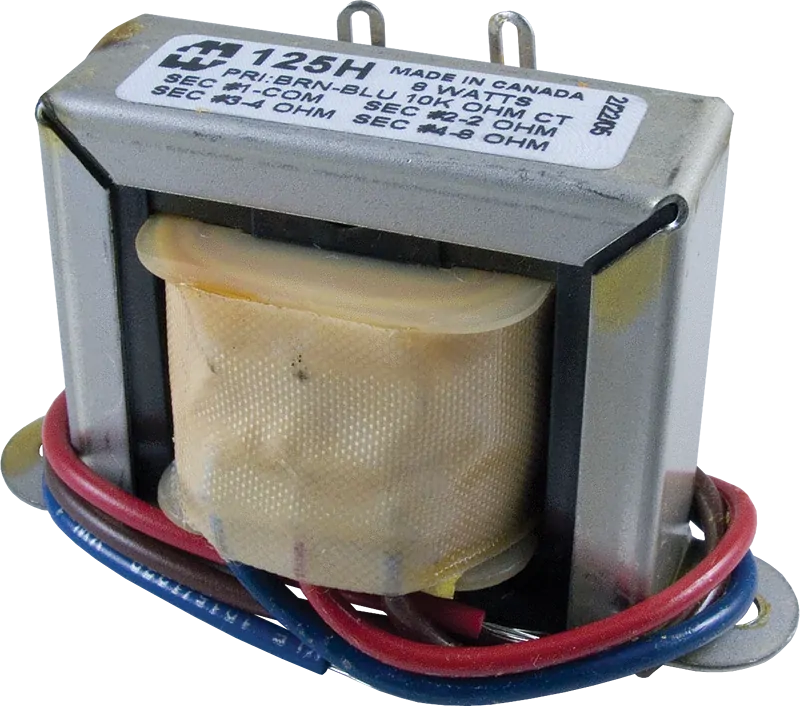

125H Output Transformer

8 Watt 248ohm, 1000ohm centre tap


  • Designed for general purpose or replacement use in push-pull tube output circuits.
  • Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
  • Open style with minimum 5" long primary leads, secondary solder lugs for convenient secondary connections.
  • Also see our 125J Series.
  • For single ended use, see our 125SE Series.
  • For more impedance options, see our universal impedance push-pull 125 Series.
Part No. Audio Primary Secondary Primary Weight Overall Dimensions Mounting
Impedance Impedance Hole
Watts (Ohms) (Ohms) Inductance (lbs.) A B C D G
125H 8 10K 2, 4 or 8 5.60 H 0.55 71 25 41 60 5
SKU 125h
Brand Hammond
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 0.100m
Unit Of Measure ea
