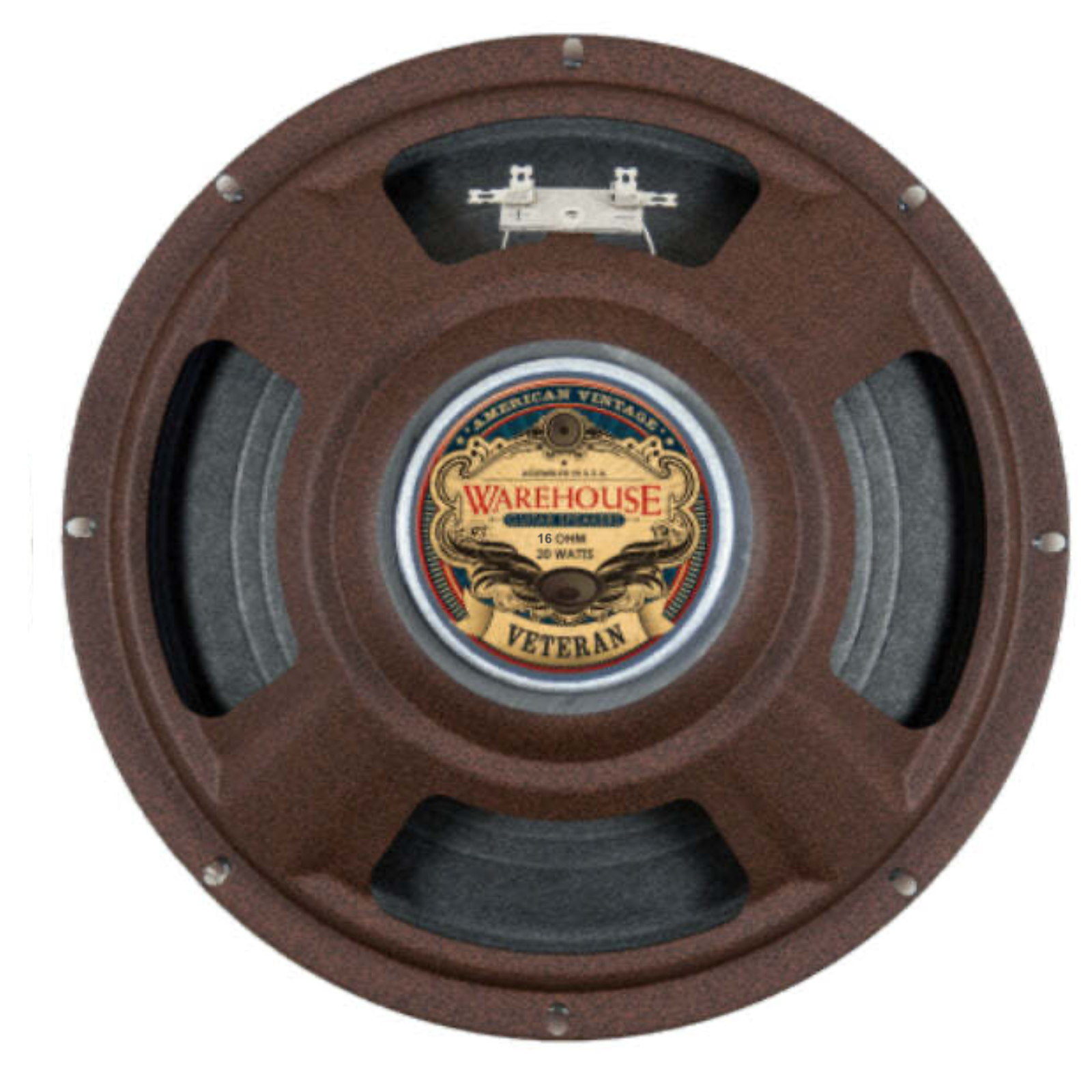

The 10” Veteran™ speaker from WGS® has great, crunchy cone breakup when pushed and touch-sensitive cleans with warm overtones. Sporting a 1" voice coil, seamed cone and 18oz magnet, this speaker is loaded with vintage mojo. Whether you are looking for fat, punchy cleans from your low powered combo or vintage American style breakup from your 4x10 the 10” Veteran™ will deliver.

Key Features

    • One piece paper cone & edge
    • Seamed Cone
    • Power handling = 20 WattsRMS
    • Stamped basket
    • Solid dust cap
    • Weight: 1.4kg

THIELE-SMALL PARAMETERS

  • Resonant Frequency (Fs): 110.86 Hz
  • DC Resistance (Re): 6.9 Ohm
  • Coil Inductance (Le): 8 mH
  • Mechanical Q (Qms): 17.2304
  • Electromagnetic Q (Qes): 1.9694
  • Total Q (Qts): 1.7674
  • Compliance Equiv. Vol. (Vas): 0.808 cu ft
  • Mech. Compliance of Susp. (Cms): 119.122 mm/N
  • BL Product (BL): 6.15 T-M
  • Diaphragm Mass Inc. Airload (Mms): 17.3021 grams
  • Surface Area of Cone (Sd): 366.0962 cm squared
  • Sound Pressure Level (spl): 93.84 db

MOUNTING INFORMATION

  • Diameter 10 1/16"”
  • Overall depth 4 1/16”
  • Cut-out diameter 9”
  • Mounting slot dimensions 1/4”
  • Number of mounting slots: 8
  • Mounting slot PCD 9 3/4”
SKU M-AV-Vet10
Brand WGS
