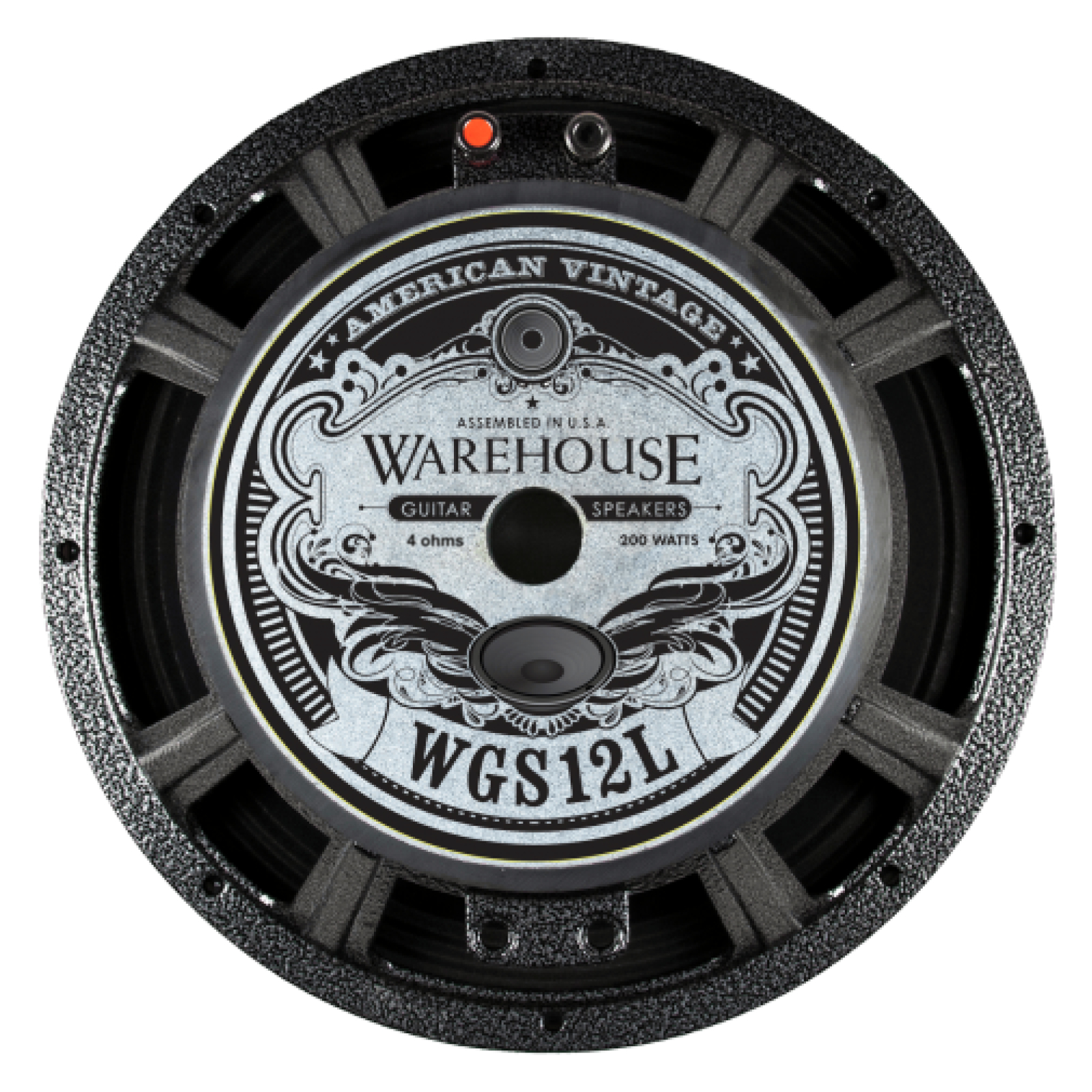

WGS 12L 12" 200 Watt 4ohm version

Headroom, clarity, balanced response, power... These terms have become synonymous with a vintage American design that is known and sought the world over. WGS now pays tribute to this classic with our WGS12L. However, like all of our designs, we didn't set out to make a clone. With this model we paid extra special attention to the details, producing a speaker that delivers that same even response without sounding sterile and lifeless. Boasting a cast frame, 2.5" voice coil and a 200 watt rating, and clocking in at 18 pounds, this beast is loaded for bear. As a welcome addition to the WGS fleet, this speaker is definitely our battleship. #EV #electrovoice

THIELE-SMALL PARAMETERS
  • Resonant Frequency (Fs): 49.58 Hz
  • DC Resistance (Re): 5.84 Ohm
  • Coil Inductance (Le): 0.35 mH
  • Mechanical Q (Qms): 7.41
  • Electromagnetic Q (Qes): 0.25
  • Total Q (Qts): 0.24
  • Compliance Equiv. Vol. (Vas): 50.51 cu ft
  • Mech. Compliance of Susp. (Cms): 0.27 mm/N
  • BL Product (BL): 16.74 T-M
  • Diaphragm Mass Inc. Airload (Mms): 38.77 grams
  • Surface Area of Cone (Sd): 366.10 cm squared
  • Sound Pressure Level (spl): 99.67 db
SKU AV_WGS12L-4-ohm
Barcode # 851639005764
Brand WGS
Shipping Weight 5.0000kg
Shipping Width 0.380m
Shipping Height 0.190m
Shipping Length 0.380m
Shipping Cubic 0.027436000m3
