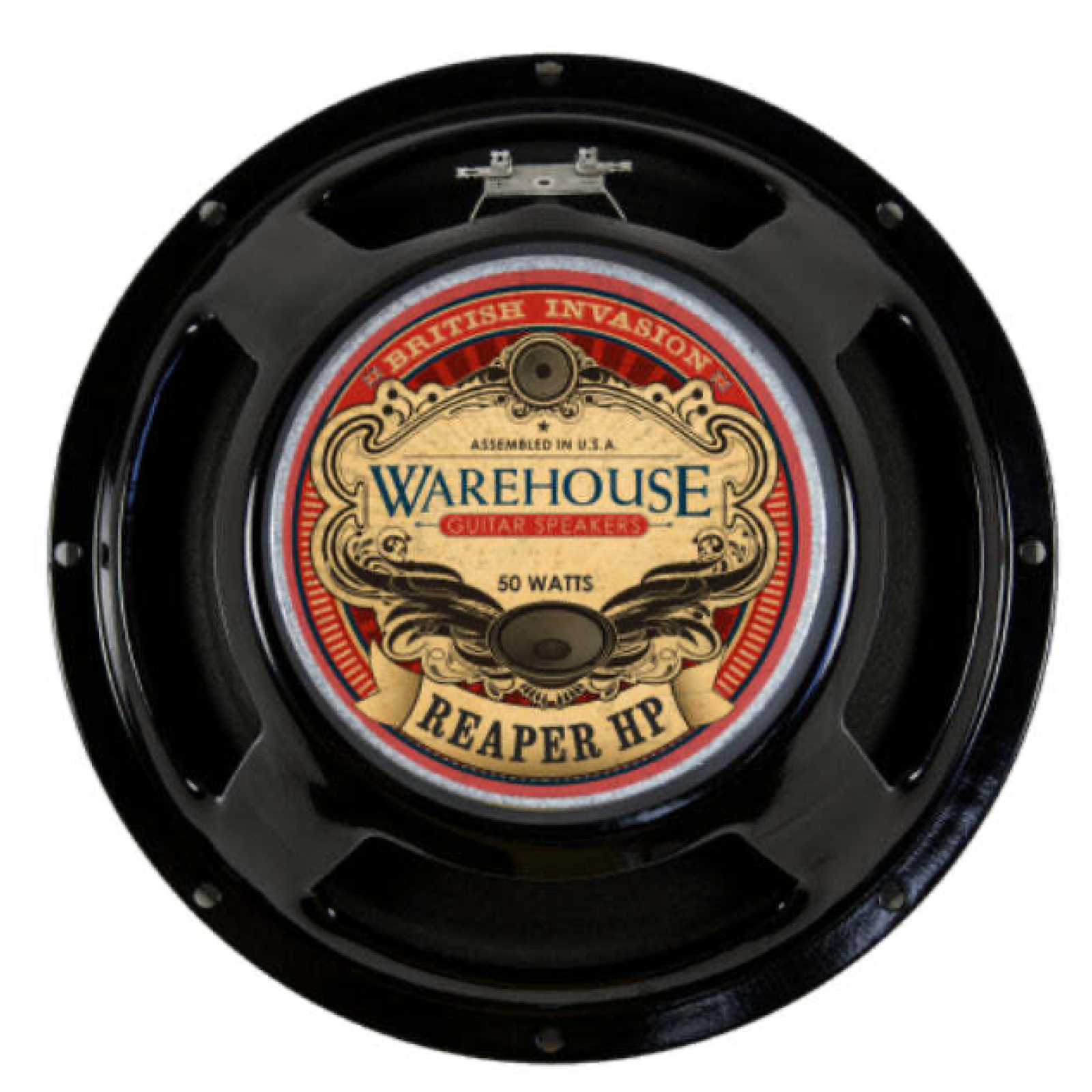

The 12” high power Reaper HP™ is designed to go where the 30-watt version couldn't. If you want a good clean tone with just the right amount of breakup at medium-high volume, then this is your speaker. This 50-watt version is both warmer and more powerful than the 30-watt version.

Weight: 4.6kg

Mounting Information

  • Diameter 12.2”
  • Overall depth 5.3”
  • Cut-out diameter 11.1”
  • Mounting slot dimensions 0.31”
  • Number of mounting slots: 8
  • Mounting slot PCD 11.7”
THIELE-SMALL PARAMETERS
  • Resonant Frequency (Fs): 101.9 Hz
  • DC Resistance (Re): 6.7 Ohm
  • Coil Inductance (Le): 8 mH
  • Mechanical Q (Qms): 8.613
  • Electromagnetic Q (Qes): 0.7235
  • Total Q (Qts): 0.6674
  • Compliance Equiv. Vol. (Vas): 1.384 cu ft
  • Mech. Compliance of Susp. (Cms): 87.6 mm/N
  • BL Product (BL): 13.76 T-M
  • Diaphragm Mass Inc. Airload (Mms): 27.8476 grams
  • Surface Area of Cone (Sd): 558.645 cm squared
  • Sound Pressure Level (spl): 99.42 db
SKU BV_RHP-4ohm
Barcode # 851639005184
Brand WGS
Shipping Weight 5.6000kg
Shipping Width 0.380m
Shipping Height 0.190m
Shipping Length 0.380m
Shipping Cubic 0.027436000m3
