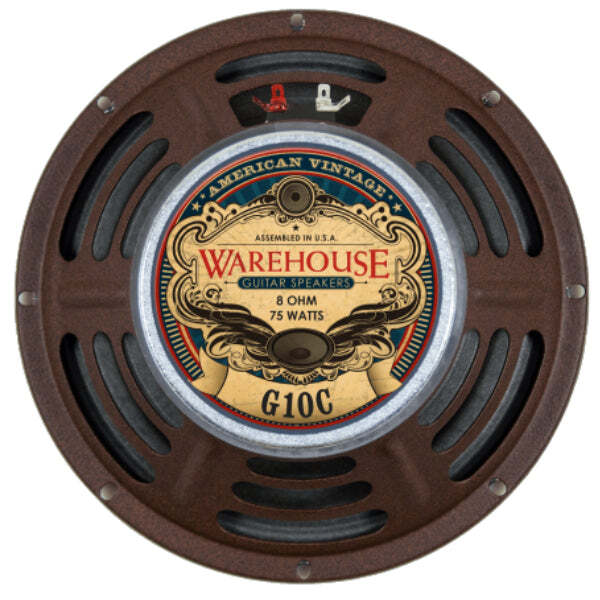

The G10C is a 10" ceramic speaker with a 35 oz magnet and seamed cone. It boasts an extremely articulate top end with lows that are full and round but controlled. If you are looking for pristine, vintage American cleans and higher power handling, look no further than the G10C.

Weight: 3.2kg

THIELE-SMALL PARAMETERS
  • Resonant Frequency (Fs): 79.61 Hz
  • DC Resistance (Re): 6.3 Ohm
  • Coil Inductance (Le): 8 mH
  • Mechanical Q (Qms): 7.7956
  • Electromagnetic Q (Qes): 0.6822
  • Total Q (Qts): 0.6273
  • Compliance Equiv. Vol. (Vas): 1.349 cu ft
  • Mech. Compliance of Susp. (Cms): 198.897 mm/N
  • BL Product (BL): 9.92 T-M
  • Diaphragm Mass Inc. Airload (Mms): 20.0945 grams
  • Surface Area of Cone (Sd): 366.0962 cm squared
  • Sound Pressure Level (spl): 96.35 db

SKU AV_G10C-8-ohm
Barcode # 851639005122
Brand WGS
Shipping Weight 4.2000kg
Shipping Width 0.320m
Shipping Height 0.150m
Shipping Length 0.320m
Shipping Cubic 0.015360000m3
