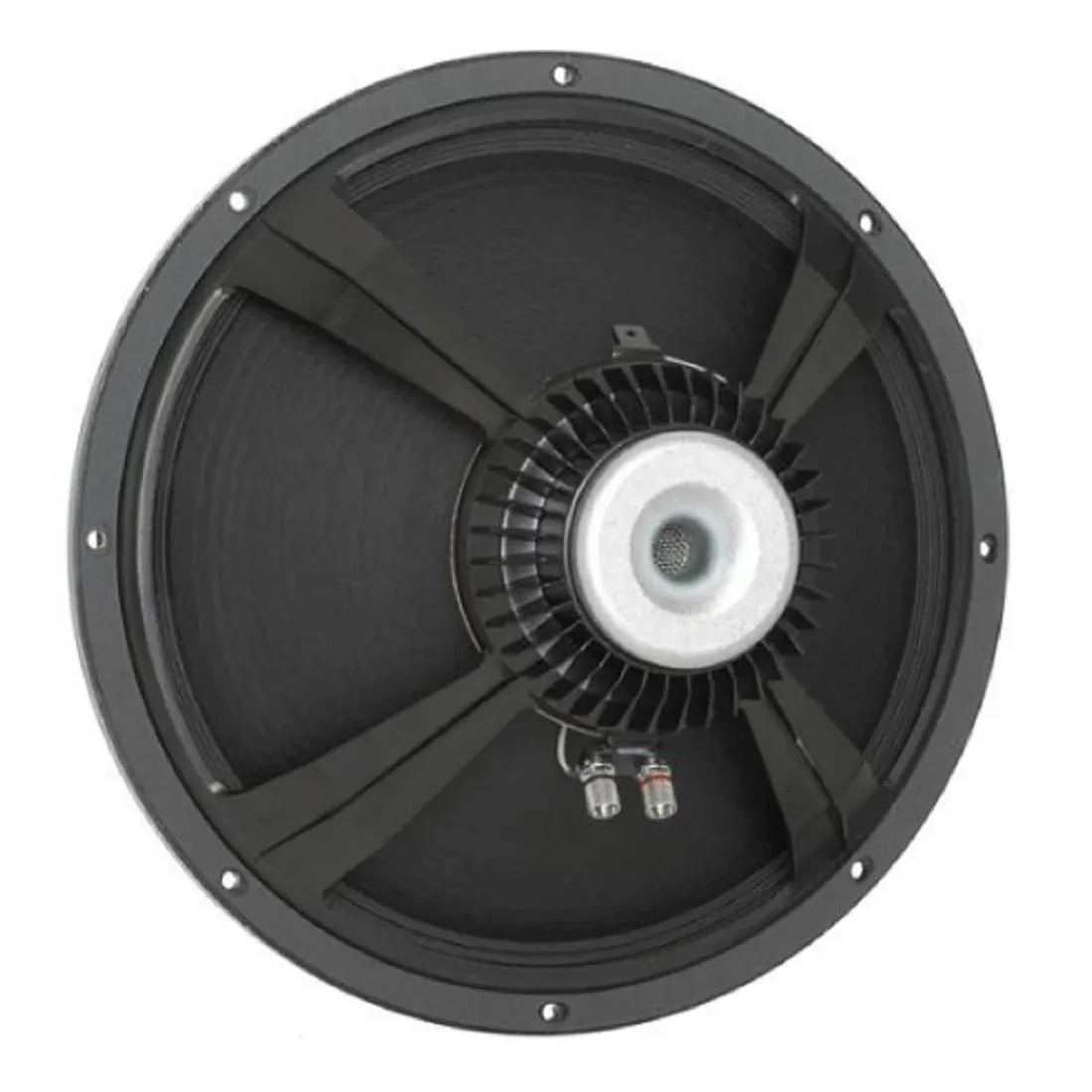

Basslite C2515 15in Bass Guitar Speaker 300 Watts 4 Ohm

The Eminence Basslite C2515 15" Speaker delivers the tone you want. Recommended for bass guitar and is ideal in either sealed or vented enclosures.

Eminence recommends the Basslite C2515 as a replacement speaker for the Kustom Groove 215H speaker cabinet and the Behringer Ultrabass BXL3000, Fender Rumble 100, Ampeg BA115T, and the Ampeg B200R combo amps.

Features

• Neodymium magnet for less weight
• Excellent in either sealed or vented enclosures

Specifications

• Nominal Basket Diameter: 15"/381mm
• Impedance: 4 ohms
• RMS Power Rating: 300 Watts
• Frequency Response: 52Hz-2.5kHz
• Sensitivity: 98dB SPL
• Voice Coil Diameter: 2.5"/63.5mm
• Net Weight: 5.7lbs./2.6kg.
• Shipping Weight: 8.6 lb./3.9 kg
• Rec. Enclosure Volume (Sealed): 1.6-2.9 cu.ft./45-82 Liters
• Rec. Enclosure Volume (Vented): 3.0-4.2 cu.ft./85-119 Liters

Thiele & Small Parameters

• Resonant Frequency (fs): 38Hz
• DC Resistance (Re): 3.72
• Coil Inductance (Le): 0.39mH
• Mechanical Q (Qms): 4.7
• Electromagnetic Q (Qes): 0.5
• Total Q (Qts): 0.45
• Compliance Equivalent Volume (Vas): 260 liters/9.2 cu. ft.
• Peak Diaphragm Displacement Volume (Vd): 381cc
• Mechanical Compliance of Suspension (Cms): 0.26mm/N
• BL Product (BL): 11.1 T-M
• Diaphragm Mass inc. Airload (Mms): 70 grams
• Efficiency Bandwidth Product (EBP): 76
• Maximum Linear Excursion (Xmax): 4.5mm
• Surface Area of Cone (Sd): 856cm2
• Maximum Mechanical Limit (Xlim): 8.5mm

Mounting Information

• Recommended Enclosure Volume: Sealed - 45-82 liters/1.6-2.9 cu.ft.; Vented - 85-119 liters/3-4.2 cu.ft.
• Overall Diameter: 15.32", 389.1mm
• Baffle Hole Diameter: 14.0", 355.6mm
• Front Sealing Gasket: fitted as standard
• Rear Sealing Gasket: fitted as standard
• Mounting Holes Diameter: 0.28", 7.0mm
• Mounting Holes B.C.D.: 14.56", 369.9mm
• Depth: 6.9", 175mm
• Net Weight: 5.7 lb., 2.6 kg
• Shipping Weight: 7.9 lb., 3.6 kg

Materials of Construction

• Copper voice coil
• Polyimide former
• Neodymium magnet
• Vented core
• Die-cast aluminum basket
• Paper Cone
• Cloth cone edge
• Solid composition paper dust cap
