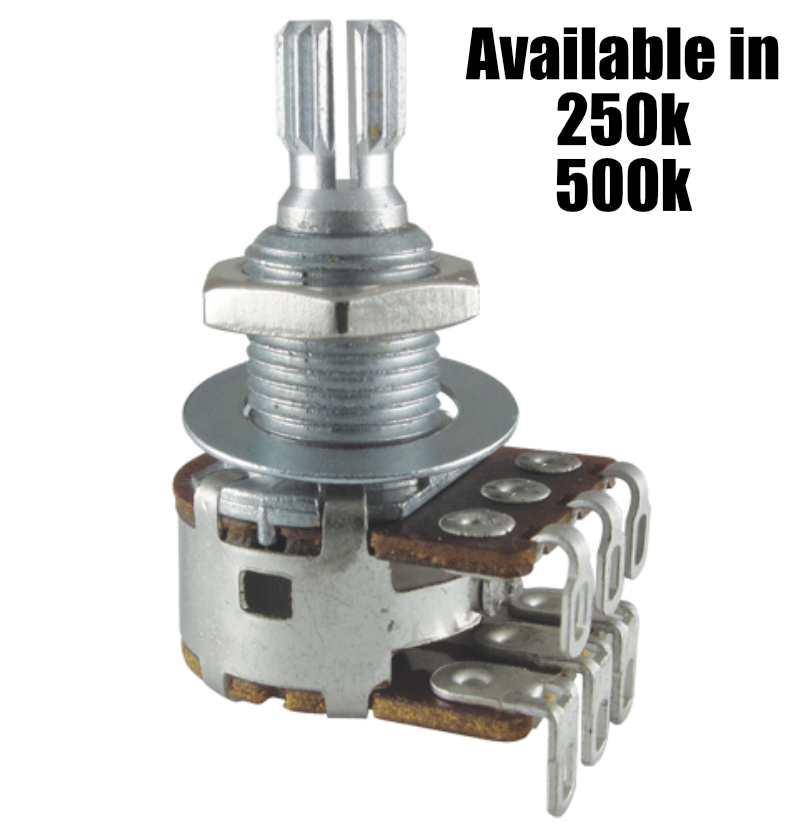

Bourns Dual Guitar Potentiometer

Bourns Guitar pots, top of the line replacements

• Dual MN taper blend-balance with center detent.
• Split shaft. 17 mm body diameter. ¼" watt, 300° rotation. ¼" shaft diameter.
• Solder lugs. ⅜" bushing.
• M taper: 0% to 100% output voltage from 0% to 50% rotation (linear). 100% ouput voltage from 50% to 100% rotation.
• N taper: 100% output voltage from 0% to 50% rotation. 100% to 0% ouput voltage from 50% to 100% rotation (linear).
• Full output for both outputs at 50% rotation (center detent).
