373X Power Transformer

350-0-350 @ 127mA

$217.00
In Stock
If an item is marked "Backorder" then they could take up to 3 weeks to arrive and may delay your order


Calculate Shipping

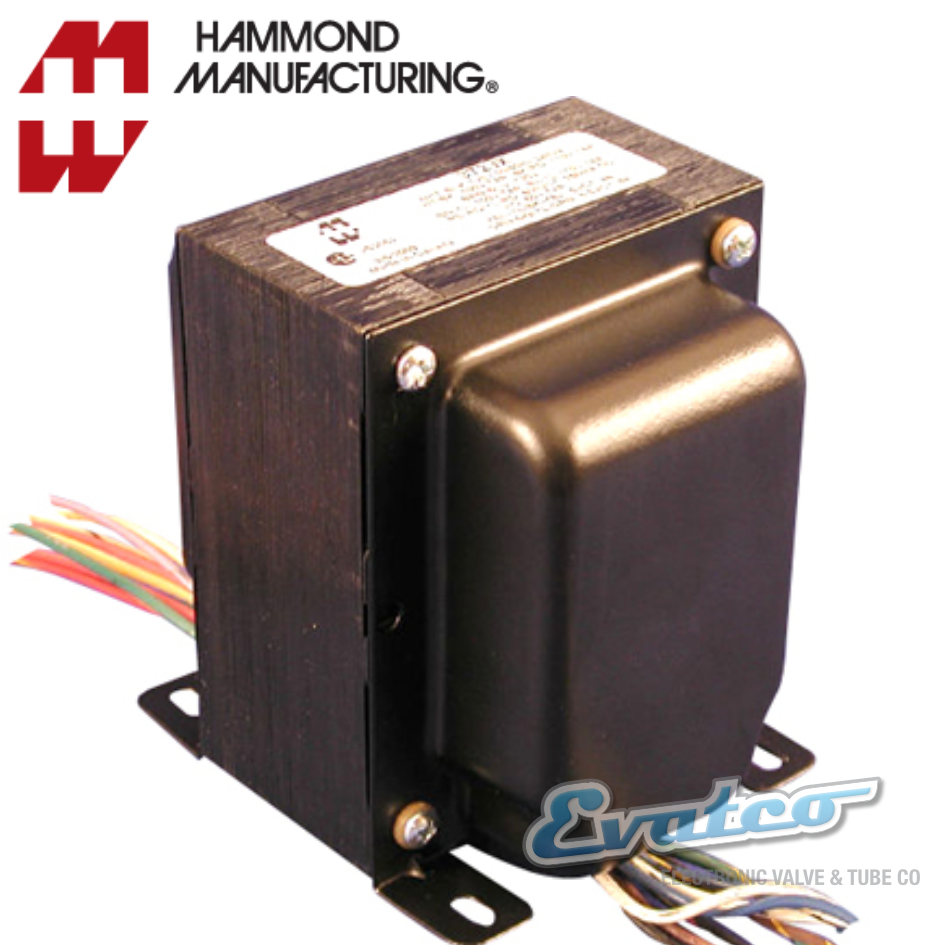

Hammond 373X Power Transformer

350-0-350 @ 127mA

50V BIAS

Filament 1- 5V C.T.@ 2A, Filament 2 - 6.3V C.T. @ 4A

Features

  • Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz.
    • NOTE: units are designed to operate with BOTH primary windings engaged.
    • See primary wiring information under resources.
  • Bias Tap: 50 VAC tap from high voltage secondary C.T. (except part number 379WX - uses a separate 60VAC 0.2 Amp winding).
  • Highpot tested: 2,000 VAC
  • Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries (shield is internally grounded to the end bell).
  • Windings: Concentric wound for low stray field and low noise.
  • Models: This series is an upgrade from our entire 200 Series range of units PLUS 2 models designed specifically for 300B tubes (Part Number 300BX) and 2A3 tubes (Part Number 302AX).
  • Finish: Black powder paint to match our 1650 series of output transformers Units can be run full wave bridge or full wave C.T.
  • Conservative designs - CSA certified (209651).
  • For a more economical, open frame, universal primary - check out our 260 Series.
  • For that "high end" look & feel check out our potted versions - the 300P Series.

(373X)

SKU 373X
Brand Hammond
Shipping Weight 3.5000kg
Shipping Width 0.240m
Shipping Height 0.240m
Shipping Length 0.270m
Unit Of Measure ea
